DIP29 Description

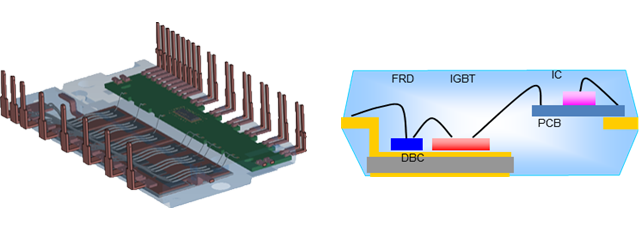

Xiner DIP29 IPM is perfectly compatible with an imported brand Mini series products. It adopts DBC and PCB technology. The products are mature and reliable, and the power level is complete. It is the first choice for servo drives.

DIP29 IPM Features and Benefits:

  • Using DBC technology, thermal conductivity and insulation performance are stronger;
  • Complete power level, a power board to achieve a variety of machines;
  • Reliable quality, full product inspection, guarantee short-circuit tolerance > 10us (400V/15V/150°C);
  • The driver IC with built-in imported SOI technology has strong anti-interference and negative pressure resistance, and the dead zone interlocking safety is higher;
  • Flexible and customized services, DBC+PCB process customization is flexible and low cost.

DIP29
Parameters

Product

number

Voltage
(V) 		Current
(A)

Insulation

withstand

voltage

(KV)

Optimization

Switch

（KHz） 		Device

Recommend

power

(W)

Thermal

interface

Bootstrap

diode

Undervoltage

protection

Overcurrent

protection

Temperature

Output

Interlock
VF
(Typ)
(V) 		Rth
(j-c)(Max)
(℃/W)
VCE
(SAT)(Typ)
(V)
XNS30S12E6 600 30 2.5 20 IGBT 3000 DBC Yes Yes Yes VOT Yes 1.6 1.5 1.1
XNS40S12E6 600 40 2.5 20 IGBT 4000 DBC Yes Yes Yes VOT Yes 1.7 1.6 1
XNS50S12E6 600 50 2.5 20 IGBT 5000 DBC Yes Yes Yes VOT Yes 1.8 1.8 0.8
XNS10S12FT 1200 10 2.5 20 IGBT 2000 DBC Yes Yes Yes NTC Yes 2 2 1.3
XNS15S12FT 1200 15 2.5 20 IGBT 2500 DBC Yes Yes Yes NTC Yes 2.1 2.2 1.3
XNS25S12FT 1200 25 2.5 20 IGBT 4000 DBC Yes Yes Yes NTC Yes 2 2 0.9
XNC20S12FT 1200 20 2.5 20 SiC-MOSFET 2500 DBC Yes Yes Yes NTC Yes 80mΩ 3 1.3
