產品中心Product
產品介紹

芯能推出的IGBT模塊采用溝槽結構的場截止技術（Trench Field Stop），溝槽元胞結構大大增加器件的功率密度，通過超薄片工藝制程（Ultra Thin Wafer Process）在芯片集電極端使用電場截止型（Field Stop）結構，從而顯著降低器件的飽和導通壓降（Vce（sat））和關斷損耗（Eoff），對比上一代產品，器件功率損耗（導通損耗與開關損耗之和）降低了33%，配合搭載獨立的等電壓快速恢復二極管（FRD），適宜于各類開關應用。 模塊采用標準封裝，產品在嚴酷的環境下具有穩定一致的電參數和牢固的可靠性。

特點與優勢：

  • 低飽和導通壓降（Vce（sat））;
  • 低開關損耗（Ets）;
  • 高擊穿電壓（BVces）;
  • 高短路電流耐量（Icsc）;
  • 電參數重復性與一致性；
  • 高可靠性。

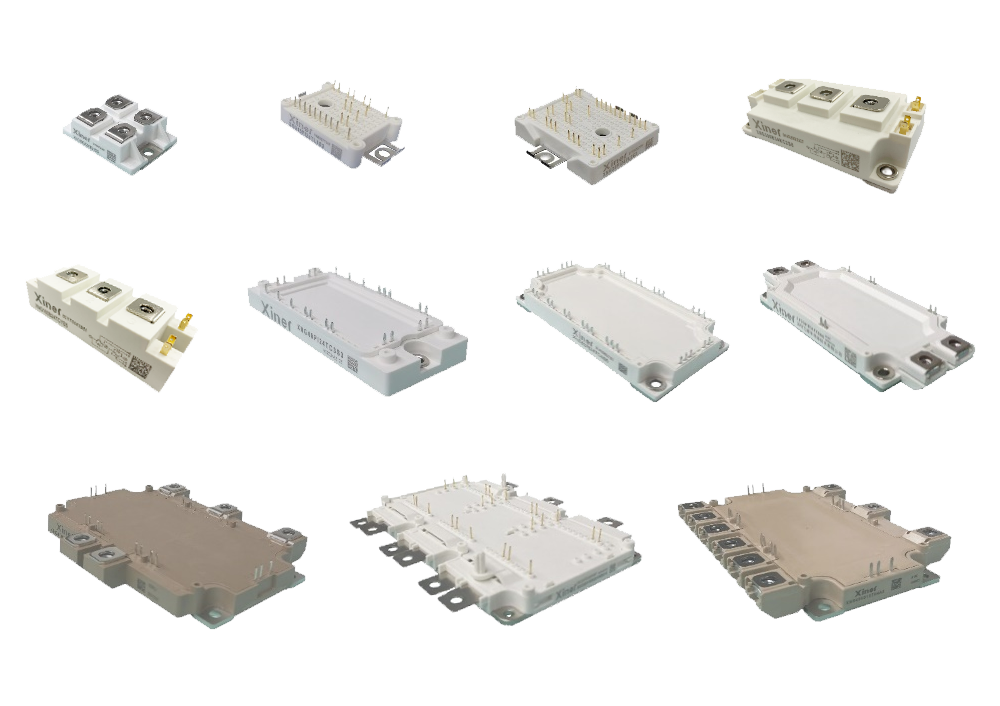

IGBT模塊
產品參數
Product Name Voltage Class IC(nom) Housing Dimensions Configuration Packge
IF(nom)
XNG20PI12TL1S3 600V 20A L1 34×48×15.5mm PIM Three Phase Input Rectifier -
XNG30PI12TL1S3 600V 30A L1 34×48×15.5mm PIM Three Phase Input Rectifier -
XNG15PI24TL1S3 1200V 15A L1 34×48×12mm PIM Three Phase Input Rectifier -
XNG25PI24TL1S3 1200V 25A L1 34×48×12mm PIM Three Phase Input Rectifier -
XNG50PI12TL2S3 600V 50A L2 48×57×15.5mm PIM Three Phase Input Rectifier -
XNG25PI24TL2S3 1200V 25A L2 48×57×15.5mm PIM Three Phase Input Rectifier -
XNG40PI24TL2S3 1200V 40A L2 48×57×15.5mm PIM Three Phase Input Rectifier -
XNG50PI24TL2S 1200V 50A L2 48×57×15.5mm PIM Three Phase Input Rectifier -
XNG50DT12L2S 1200V 50A L2 48×57×15.5mm SixPack Three Phase Bridge -
XNG75DT12L2S 1200V 75A L2 48×57×15.5mm SixPack Three Phase Bridge -
XNG100I13TL2S 650V 100A L2 57×48×12mm I-Type NPC Inverter -
XNG150I13TL2S 650V 150A L2 57×48×12mm I-Type NPC Inverter -
XNG450I13KL3E 650V 450A L3 107.2×47×16.7mm I-Type NPC Inverter -
XNG50B24UC1S 1200V 50A C1 94×34×30mm Half Bridge -
XNG75B24UC1S 1200V 75A C1 94×34×30mm Half Bridge -
XNG75B24KC1S 1200V 75A C1 94×34×30mm Half Bridge -
XNG100B24UC1S6 1200V 100A C1 94×34×30mm Half Bridge -
XNG100B24KC1S 1200V 100A C1 94×34×30mm Half Bridge -
XNG150B24UC1S 1200V 150A C1 94×34×30mm Half Bridge -
XNG150B24KC1S 1200V 150A C1 94×34×30mm Half Bridge -
XNG150B24UC2S 1200V 150A C2 106×62×30mm Half Bridge -
XNG150B24KC2S 1200V 150A C2 106×62×30mm Half Bridge -
XNG200B24UC2S6 1200V 200A C2 106×62×30mm Half Bridge -
XNG200B24KC2S5 1200V 200A C2 106×62×30mm Half Bridge -
XNG300B24UC2S5 1200V 300A C2 106×62×30mm Half Bridge -
XNG300B24KC2S5 1200V 300A C2 106×62×30mm Half Bridge -
XNG450B24UC2S 1200V 450A C2 106×62×30mm Half Bridge
XNG450B24KC2S 1200V 450A C2 106×62×30mm Half Bridge -
XNG15PI24TC3 1200V 15A C3 107×45×17mm PIM Three Phase Input Rectifier -
XNG25PI24TC3 1200V 25A C3 107×45×17mm PIM Three Phase Input Rectifier -
XNG35PI24TC3 1200V 35A C3 107×45×17mm PIM Three Phase Input Rectifier -
XNG40PI24TC3 1200V 40A C3 107×45×17mm PIM Three Phase Input Rectifier -
XNG50PI24TC3 1200V 50A C3 107×45×17mm PIM Three Phase Input Rectifier -
XNG50D24TC3S 1200V 50A C3 107×45×17mm SixPack Three Phase Bridge -
XNG75D24TC3S 1200V 75A C3 107×45×17mm SixPack Three Phase Bridge -
XNG100D24TC3S 1200V 100A C3 107×45×17mm SixPack Three Phase Bridge -
XNG25PI24TC3AS3 1200V 25A C3 107×45×17mm PIM Three Phase Input Rectifier -
XNG40PI24TC3AS3 1200V 40A C3 107×45×17mm PIM Three Phase Input Rectifier -
XNG50PI24TC4AS5 1200V 50A C4 122×62×17mm PIM Three Phase Input Rectifier -
XNG50PI24TC4S5 1200V 50A C4 122×62×17mm PIM Three Phase Input Rectifier -
XNG75PI24TC4AS5 1200V 75A C4 122×62×17mm PIM Three Phase Input Rectifier -
XNG75PI24TC4S5 1200V 75A C4 122×62×17mm PIM Three Phase Input Rectifier -
XNG100PI24TC4S5 1200V 100A C4 122×62×17mm PIM Three Phase Input -
XNG150PI24KC4S 1200V 150A C4 122×62×17mm PIM Three Phase Input -
XNG100D24TC4S 1200V 100A C4 122×62×17mm SixPack Three Phase Bridge -
XNG150D24KC4A5 1200V 150A C4 122×62×17mm SixPack Three Phase Bridge -
XNG150D24KC4A5D 1200V 150A C4 122×62×17mm SixPack Three Phase Bridge -
XNG200D24KC4S 1200V 200A C4 122×62×17mm SixPack Three Phase Bridge -
XNG300B24LC5E 1200V 300A C5 152×62×17mm Half Bridge -
XNG450B24KC5A5 1200V 450A C5 152×62×17mm Half Bridge -
XNG600B24LC5E 1200V 600A C5 152×62×17mm Half Bridge -
XNG300B34KC5E 1700V 300A C5 152×62×17mm Half Bridge -
XNG450B34KC5A5 1700V 450A C5 152×62×17mm Half Bridge -
XNG600B34LC5E 1700V 600A C5 152×62×17mm Half Bridge -
XNG600B24LC5E-Y
1200V 600A C5 152×62×17mm Half Bridge ME4
XNG400DT08H4A-J11  750V 400A H4 140×112×21mm SixPack Three Phase Bridge HP1-DC2
XNG500DT08H4A-H11
750V 500A H4 140×112×30mm SixPack Three Phase Bridge HP1-DC2
XNG250D24TH4AH
1200V 250A H4 140×112×30mm SixPack Three Phase Bridge HP1-DC2
XNG550DT08H6A-H16
750V 550A H6 140×112×30mm SixPack Three Phase Bridge HP1-DC6
XNG600DT08H6A-H14
750V 600A H6 140×112×30mm SixPack Three Phase Bridge HP1-DC6
XNG400DT08XA-J11
750V 400A X 140×112×22mm SixPack Three Phase Bridge DC6i
XNG500DT08XA-H11
750V 500A X 140×112×30mm SixPack Three Phase Bridge DC6i
XNG550DT08XA-H16
750V 550A X 140×112×30mm SixPack Three Phase Bridge DC6i
XNG250DT12XA-H16
1200V 250A X 140×112×30mm SixPack Three Phase Bridge DC6i
XNG400DT08WA-CH11
750V 400A W 154.5×126.5×32 SixPack Three Phase Bridge HPD
XNG600DT08WA-CH11
750V 600A W 154.5×126.5×32 SixPack Three Phase Bridge HPD
